Extra-818

The Extra - 818 is the outcome of more than a decade of treatments and thousands of devices operated worldwide. It contains It contains unique features:
  * Contemporary touch screen control
  * Built-in Patch Test procedure for examining the optimal energy level
  * A stunning number of 450,000 flashes in both lamps.
  * The Large Handpiece has a Push Button in addition to the Foot Switch making
     work easier and faster for the therapist.

The Extra - 818, based on Active's GEM-PL technology, sets sets a specific Pulse Pattern according to the selected treatment type, skin color, skin photosensitivity and treatment depth.
The treatment protocols and different pulse patterns take into account the tissue's TRT (Thermal Relaxation Time) and the combined knowledge accumulated from thousands of treatments done during the years and clinical investigations done to confirm the findings.

The combination of tested treatment protocols with high end engineering makes the Extra - 818 the perfect device for leading clinics.

Revolutionary Cooling System
The Extra - 818 has a dual cooling system, controlled and monitored in order to ensure long lifetime to the lamp and a comfortable treatment to the patient.

Competitive cooling systems "freeze" the skin so that during the treatment the skin temperature will rise to a bearable level. However, this "freezing" temperature might limit the results because the follicles will not reach the coagulation temperature. To ensure optimal results Active installed a special Processor that prevents overcooling the skin and maintains a uniform low temperature of the "glass" throughout the treatment. This revolutionary system enables the Extra - 818 to provide best results with optimal patient comfort.


Research Program
For clinical investigations, the self setting program allows researchers to set the treatment's parameters according to their needs. Allowing advanced research with the device.
The energy levels in the self setting program can reach 31J\cm2 with high intensity of 4,000W.




Mark

Complies with:


* CE MDDIntl. Medical Standard
* FDAUS Safety Standard
* ISO-13485Med. Production STD
* IEC 60-601-1Medical Safety STD
* CFSGov. Health Approval
* CSACan.& US Safety App
* TGAAustralian health STD.

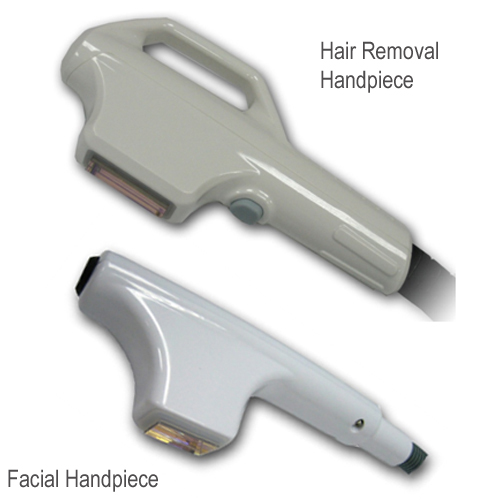

Handpieces:Integrated dual handpieces
Chilled Tip:Up to 4c
Pulse Interval:0.5~2 Seconds
Output Power:11-31 joule/cm2, upto 4,000W
Cooling System:Revolutionary dual cooling
Control:Intuitive touch screen control
Lamp's Life Span:250,000 Flashes (Universal)
200,000 Flashes (Facial)
Treatment Area:7.5 cm2 (15*50mm) Universal
4.5 cm2 (15*30mm) Facial
Wavelength:420-1100 nm
Weight:42Kg (including Stand)
Dimensions:44cm x 45cm x 100cm
  Skin Rejuvenation
  Pigmentation Treatment
  Acne Treatment
  Hair Removal
  Vascular (Facial) Treatment
  Tattoo Removal
